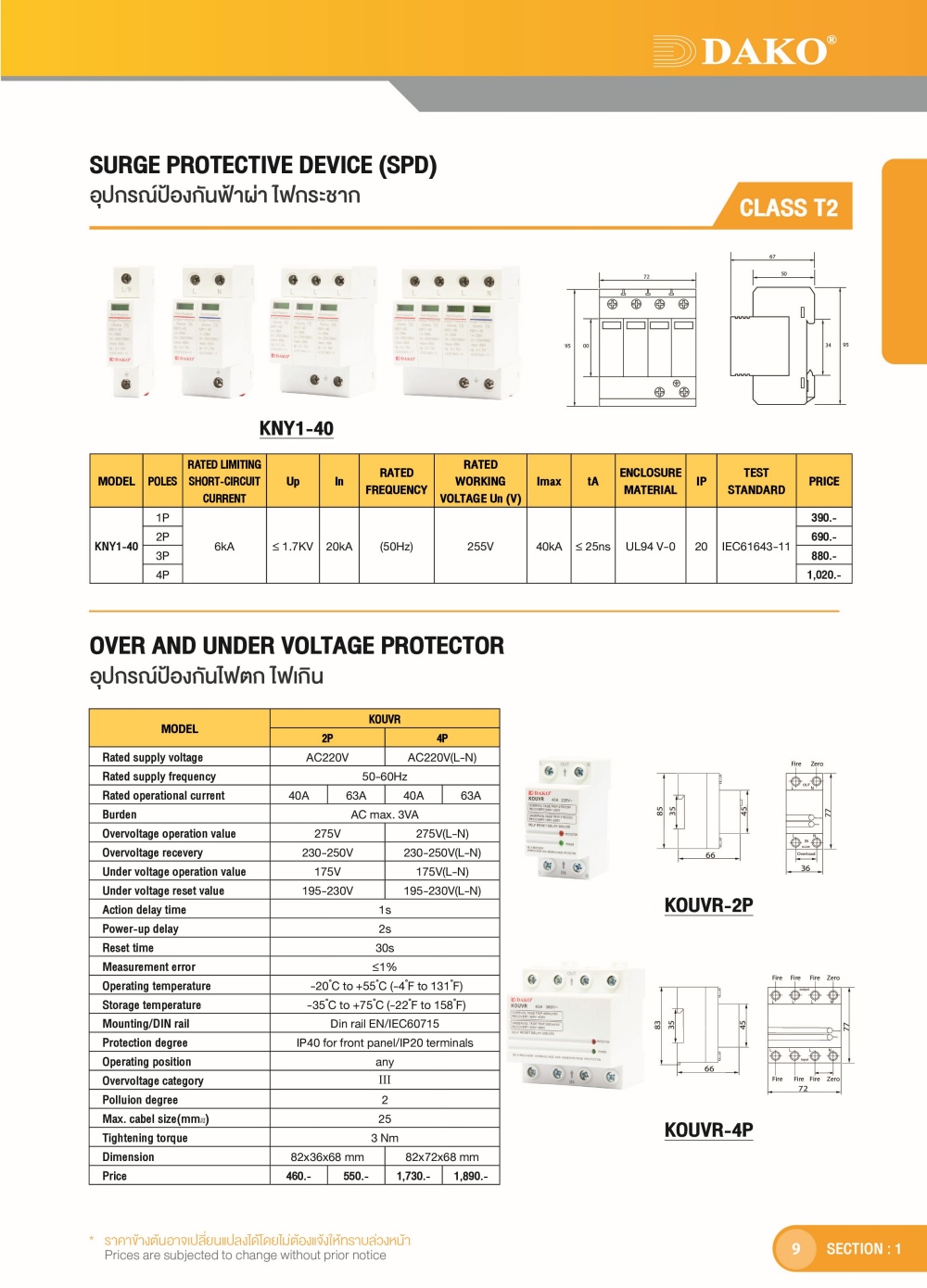

MODEL |
KOUVR |
|||
|
KOUVR-2P |
KOUVR-4P |
|||
|
Rated supply voltage |
AC220V |
AC220V(L-N) |
||
|
Rated supply frequency |
50-60Hz |
|||
|
Rated operational current |
40A |
63A |
40A |
63A |
|
Burden |
AC max. 3VA |
|||
|
Overvoltage operation value |
275V |
275V(L-N) |
||
|
Overvoltage recevery |
230-250V |
230-250V(L-N) |
||
|
Under voltage operation value |
175V |
175V(L-N) |
||
|
Under voltage reset value |
195-230V |
195-230V(L-N) |
||
|
Action delay time |
1s |
|||
|
Power-up delay |
2s |
|||
|
Reset time |
30s |
|||
|
Measurement error |
≤1% |
|||
|
Operating temperature |
-20 ํC to +55 ํC (-4 ํF to 131 ํF) |
|||
|
Storage temperature |
-35 ํC to +75 ํC (-22 ํF to 158 ํF) |
|||
|
Mounting/DIN rail |
Din rail EN/IEC60715 |
|||
|
Protection degree |
IP40 for front panel/IP20 terminals |
|||
|
Operating position |
any |
|||
|
Overvoltage category |
III |
|||
|
Polluion degree |
2 |
|||
|
Max. cabel size(mm²) |
25 |
|||
|
Tightening torque |
3 Nm |
|||
|
Dimension |
82x36x68 mm |
82x72x68 mm |
||
|

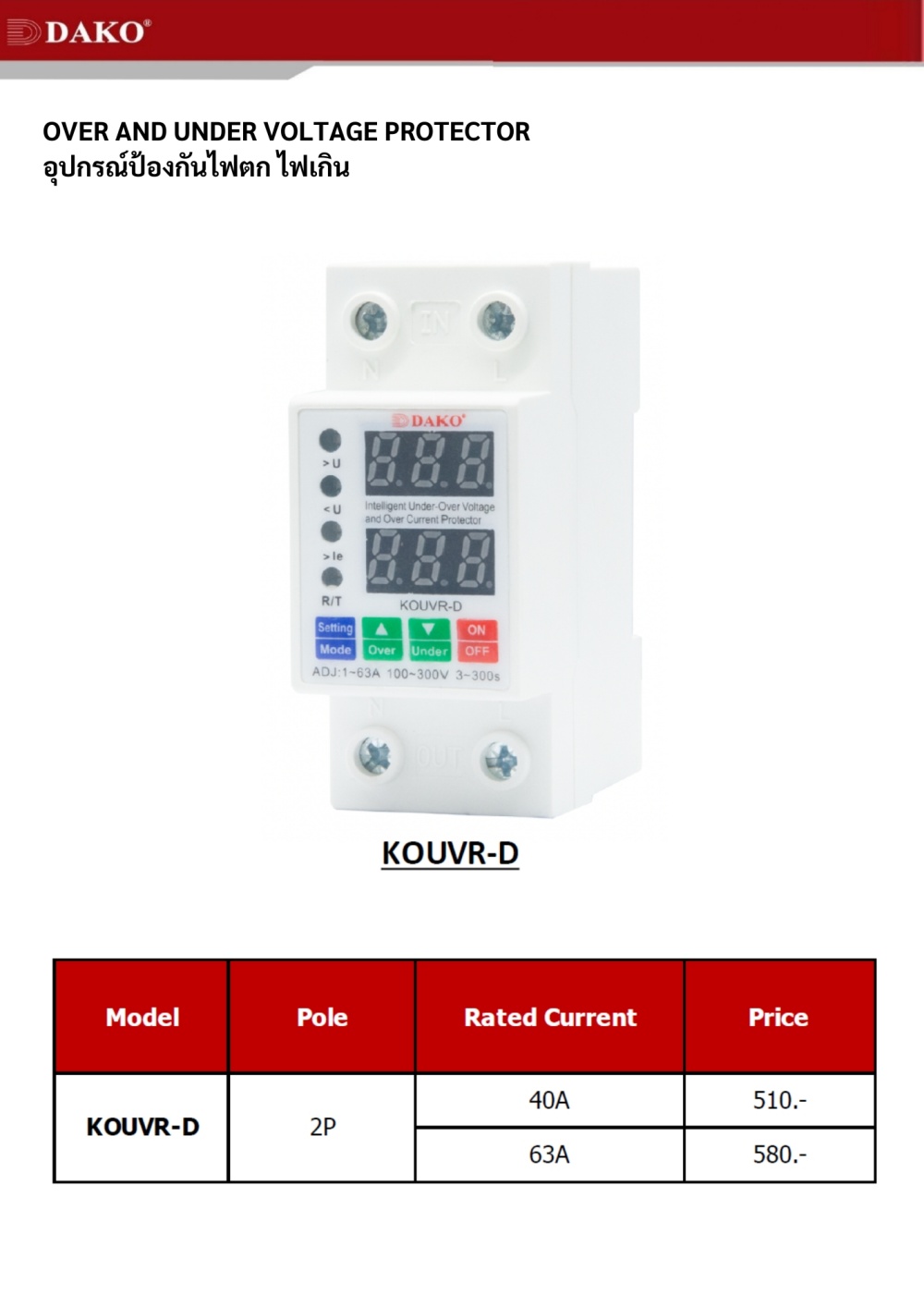

Model |
Pole |
Rated Current |
|
|
|
40A |
|
63A |
